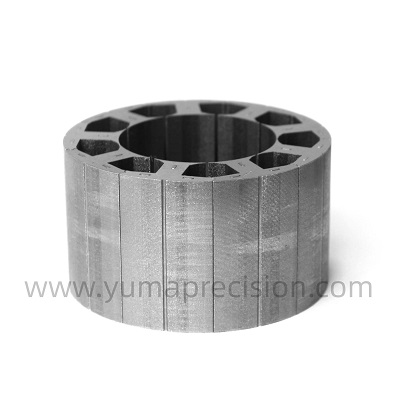

80(9 slots-8poles SPM）
80(9 slots-8poles SPM）
80(9 slots-8poles SPM）
Outer diameter 76.4
Number of slot 9
Pole width 7.2
Height of core 45
whatsup:17318815976
mail:e-shop@yumalamination.com
80（9 slots-7.2-8poles SPM)
| Stator | Rotor | |||||||||
| Outer diameter | Inner diameter | Pole width | Number of slot | Height of core | Material thickness | Outer diameter | Inner diameter | Pole | Height of core | Material thickness |
| 76.4 | 44.6 | 7.2 | 9 | L=45 | 0.35 | 37.4 | 16 | 8 | L=45 | 0.5 |
| source area： | Changzhou, Jiangsu, China | Packaging： | Weather bag + rust proof paper + carton/wooden case, etc |
| certificate： | IATF16949、ISO14001、ISO45001 | Brand: | YUMA |
| materials: | The main raw materials are 0.2/0.35/0.5 thick materials | Is it customizable： | made-to-order |
| delivery time: | Standard parts 3-10 days, non-standard parts 10-20 days | Manufacturing type: | Manufacturing manufacturer |
| mould: | Independent production and manufacturing |
 |  |  |
| Motor stator rotor core | Stamping tool | self developed equipment |
Inquire Now
